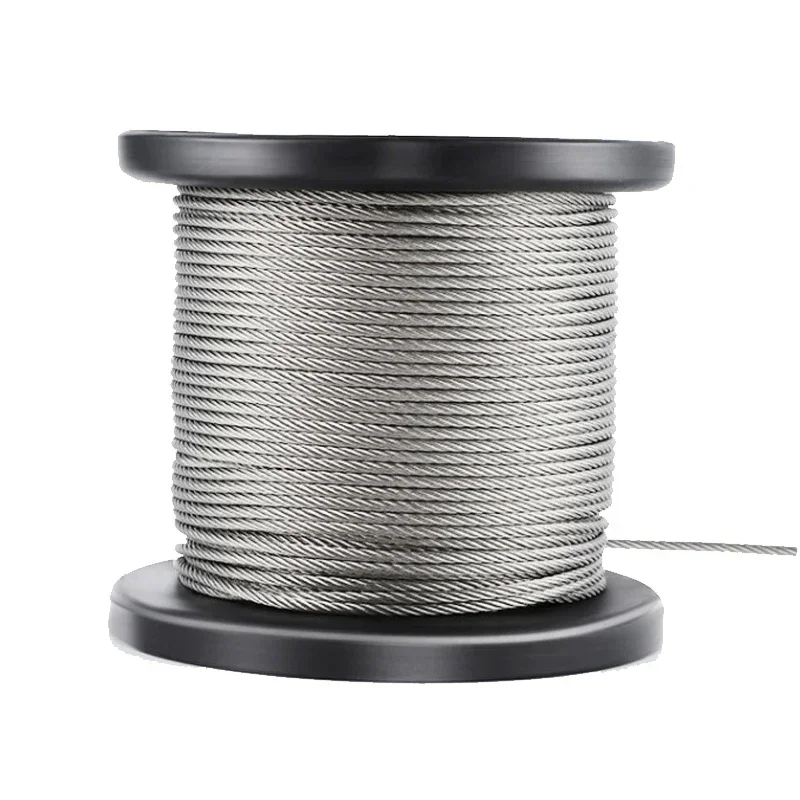

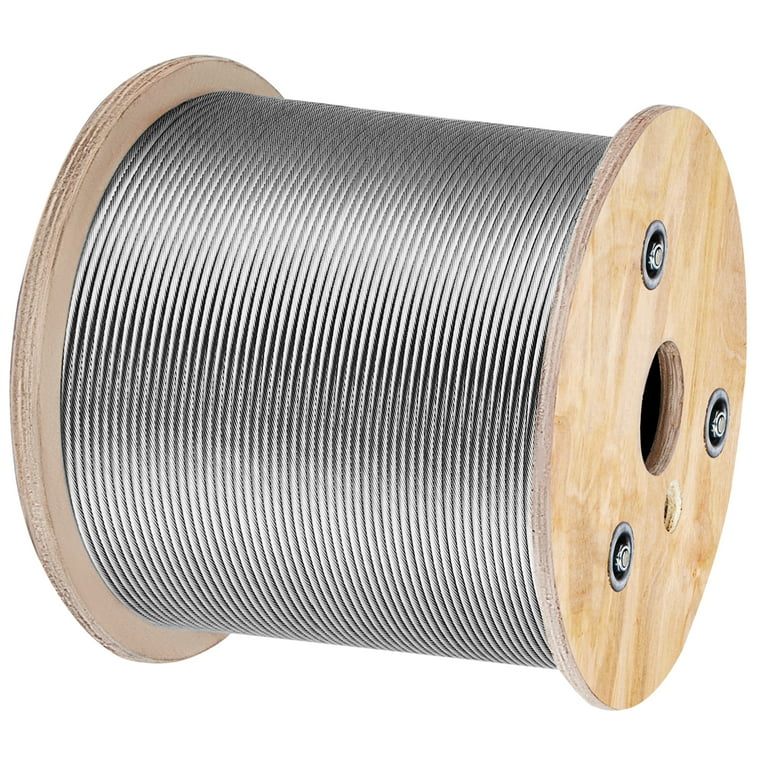

1. What Is 304 Stainless Steel Wire Rope?
304 stainless steel wire rope is made from a widely used austenitic stainless steel grade known for its excellent corrosion resistance and formability. It contains approximately 18% chromium and 8% nickel, often referred to as 18/8 stainless steel (ASTM equivalent to AISI 304, GB standard: 06Cr19Ni10).
Thanks to its balanced mechanical and chemical properties, 304 stainless steel wire rope is one of the most commonly used materials across industrial, marine, and architectural applications.
2. Specifications
304 stainless steel wire ropes are available in a wide range of sizes:
- Diameter Range: 0.03 mm – 40 mm
- Surface Options: Bright, coated (PVC/nylon), galvanized core optional
- Construction Types: Flexible or compacted
3. Common Constructions
We offer a variety of constructions to meet different strength and flexibility requirements:
- 1×7
- 1×19
- 6×7
- 7×7
- 7×19
- 7×37

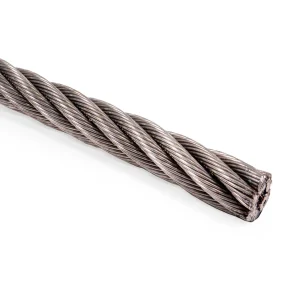

- 6×19
- 6×19 + IWRC
👉 Most widely used: 1×7, 1×19, 7×7, 7×19
4. Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤ 0.07 |
| Silicon (Si) | ≤ 1.0 |
| Manganese (Mn) | ≤ 2.0 |
| Chromium (Cr) | 17.0 – 19.0 |
| Nickel (Ni) | 8.0 – 11.0 |
| Sulfur (S) | ≤ 0.03 |
| Phosphorus (P) | ≤ 0.035 |
5. Mechanical & Physical Properties
| Property | Value |
|---|---|
| Yield Strength | ≥ 205 MPa |
| Tensile Strength | ≥ 520 MPa |
| Elongation | ≥ 40% |
| Hardness | HB ≤ 187 / HRB ≤ 90 |
| Density | 7.93 g/cm³ |
| Melting Point | 1398 – 1420°C |
| Electrical Resistivity | 0.73 Ω·mm²/m |
6. Why Does 304 Stainless Steel Wire Rope Have Excellent Corrosion Resistance?
The corrosion resistance of 304 stainless steel comes from its chromium content. Chromium reacts with oxygen in the air to form a thin, stable chromium oxide layer on the surface. This passive film protects the material from further oxidation and corrosion.
Nickel further enhances corrosion resistance and improves toughness and ductility. To maintain long-term corrosion resistance, international standards require at least 12% chromium content—304 stainless steel exceeds this requirement.
7. Applications
304 stainless steel wire rope is widely used in industries requiring both strength and corrosion resistance:
- Marine and offshore applications
- Construction and architectural cables
- Lifting and rigging systems
- Food processing equipment
- Chemical and industrial equipment
- Safety cables and guardrails
- Fishing lines and control cables
- Elevators and hoisting systems
It is also commonly used in coated forms (PVC or nylon) for enhanced durability and safety.
8. Customization Options
We provide flexible customization to meet your specific project requirements:
- Custom diameter and length
- Different constructions and strand designs
- PVC / Nylon coating (various colors available)
- Pre-cut and assembled wire rope kits
- Special packaging and OEM branding
9. Why Choose Us
- Strict quality control and material traceability
- Wide inventory and fast delivery
- Custom engineering support
- Competitive pricing for bulk orders
- Reliable supplier for industrial applications
